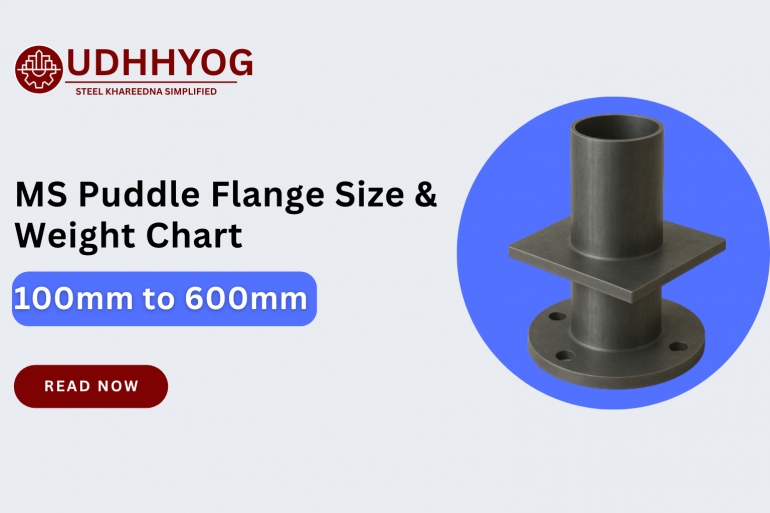

MS Puddle Flange Size & Weight Chart – 100mm to 600mm
MS Puddle Flange Size & Weight Chart – 100mm to 600mm
Are you searching for a detailed MS puddle flange weight chart by size? This page provides complete dimension-wise kg/meter values for MS puddle flanges from 100mm to 600mm NB. Whether you're an engineer, contractor, or procurement head, our data-backed weight chart and downloadable PDF will simplify your project calculations.
Why Puddle Flange Weight Matters
- Helps calculate total steel requirement
- Important for RCC embedding calculations
- Useful for transport load estimation
- Impacts total cost based on MS rate per kg
- Ensures RCC opening sizes align with flange OD
- Facilitates accurate BOQ preparation
MS Puddle Flange Weight Chart (Indicative)
| Size (NB) | Outer Diameter (mm) | Thickness (mm) | Approx. Weight (kg) |
|---|---|---|---|
| 100 NB | 220 | 8 | 5.6 |
| 150 NB | 285 | 10 | 8.9 |
| 200 NB | 340 | 10 | 12.5 |
| 250 NB | 395 | 12 | 17.8 |
| 300 NB | 445 | 12 | 22.7 |
| 400 NB | 565 | 15 | 31.6 |
| 450 NB | 615 | 15 | 38.4 |
| 600 NB | 770 | 20 | 51.2 |
*All weights are approximate and for MS base material. GI or epoxy coating may slightly increase weight.
Download Full Weight & Size Chart PDF
- ⬇️ Click to Download Puddle Flange Chart PDF
- Includes: Outer diameter, thickness, weight (kg)
- Format: A4 landscape | Updated: 2025
How to Use the Chart Effectively
Use the chart in combination with your pipe design and RCC shuttering drawings. Always match the flange OD with RCC cutout size to avoid installation gaps. In civil projects, errors in flange thickness can affect waterproofing and structural integrity.
- Match flange OD with RCC pipe sleeve
- Account for coating thickness if GI/Epoxy is applied
- Factor weight into your RCC load calculation
- Ensure bolt hole drilling (if needed) aligns with pipe wall
Steel Cost Estimation Based on Flange Weight
Multiply the weight by your local MS rate per kg. For example, if MS is ₹70/kg and your flange weighs 22.7 kg, the raw cost = ₹1589. Add fabrication, coating, and logistics to finalize price.
Custom MS Puddle Flange Sizes
Not all projects use standard NB sizes. Udhhyog supports fabrication of custom puddle flanges in any OD and thickness. Upload your drawing or submit a BOQ to receive a technical quote.
Drawing Support
- 2D PDF drawings with dimensional callouts
- DWG/AutoCAD files for integration into RCC tank design
- Optional 3D rendering for large EPC projects
Related Resources
- MS Puddle Flange – Full Specifications
- Puddle Flange Price List PDF – 2025
- Top MS Puddle Flange Manufacturers
- Buy MS Puddle Flange Online – Udhhyog
Contact for Bulk Orders or Custom Sizes
FAQ – MS Puddle Flange Size & Weight
Q1. How do I calculate puddle flange weight?
Use the formula: π × (OD² - ID²) × thickness × 0.00000785 for weight in kg.
Q2. Can I get GI or epoxy-coated weights?
Yes, weights may vary by 3–7% depending on coating thickness.
Q3. Do I need to adjust wall cutouts as per OD?
Yes, use outer diameter values to size RCC wall openings accurately.
Q4. Where can I find MS rate per kg?
Check with your local steel dealer or refer to Udhhyog’s daily MS rate update.
Q5. Can I get this chart in Excel format?
Yes, contact Udhhyog to request the chart in .xls or .csv formats.
